Lumina Trunion

LUMINA TRUNION

The Lumina luminaire emits a wide variety of beam options for landscape lighting, sign lighting, and architectural wall washing. This weatherproof fixture is available in a variety of  wattage's and intensities.


Ideal solution for landscape lighting

Symmetrical or asymmetrical light distribution.

Adjustable trunion arm mounted.

LM6 die cast aluminium.

IP66.

8.3 kg total weight including control gear.

Windage projected areas for mounting up to 0.03m2

SPECIFICATIONS

MODEL NUMBER : C147R - LUMINA TRUNION

HOUSING : LM 6 die cast aluminium and extruded aluminium.

LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 124W. The LED is an Osram high powered LED mounted onto an aluminium circuit board incorporating Zener diodes and thermal protection.
Recommended LED 4000 Kelvin Natural white with CRI >70.
Ambient temperature 36° C , designed for 55 000 hours.

LENSES : Modular optical lenses. Material PMMA.
Various lens options available for different applications, allowing for custom solutions.

DIFFUSER : Toughened glass or high impact acrylic offering added protection for optical lenses.

FINISH : Cast aluminium or powder coated.

MOUNTING : Adjustable trunion arm. Mild steel hot dipped galvanised.

CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.
Incorporating an electronic trip connector protector with surge protection 6 KV. Additional removable inline surge arrester 10 KV.

FASTENERS : All external screws are stainless steel. Cable glands are SABS approved to insulate IP67 ingress protection.

GASKET : Gaskets are manufactured from post cured silicone rubber material. Silicone gaskets perform in a wide temperature range -40° C to +200° C.

INGRESS PROTECTION : Ingress Protection Rating optical compartment - IP 66.
Ingress Protection Rating gear compartment - IP 66.

OPERATING TEMPERATURE (Ta) ≤ 36° C.

WEIGHT : 8.3 Kg total including control gear.

WINDAGE : Max. projected areas for mounting 0.03m2.

ADDITIONAL OPTIONAL FEATURES :
DAYLIGHT SWITCH : Photocell can be incorporated.
VANDAL RESISTANT : Tamper proof latch available
DIMMING : Optional dimming is available on request.
INSTALLATION : Level indicator.

LIGHT SOURCE

LED Osram Oslon Square Giant 4000 Kelvin

 12 LED's24 LED's36 LED's48 LED's
LED
Current
Power
(W)
Nominal
Flux (lm)
Power
(W)
Nominal
Flux (lm)
Power
(W)
Nominal
Flux (lm)
Power
(W)
Nominal
Flux (lm)
350mA12W1910 lm23W3820 lm35W5730 lm47W7640 lm
500mA17W2676 lm34W5352 lm51W8028 lm68W10704 lm
700mA24W3617 lm48W7234 lm72W10851 lm96W14468 lm
900mA31W4443 lm62W8886 lm93W13329 lm124W17772 lm

3000K and 5000K available on request. For 3000K reduce lumen output by 7%.
The nominal flux of the LED is based on the LED manufacturers data at 25° C.
The environmental conditions of the installation will impact the efficiency of the LED’s.
Due to the continual advancement in LED technology the type of LED is subject to change.

LIGHT DISTRIBUTION

Suggested lens options. Various lens options available for different applications, allowing for custom solutions.

LED 96W RLS361LED 96W RLS499LED 96W RLS858LED 96W RLS360

APPLICATION AREAS
  • Indoor or outdoor application.
  • Symmetrical or asymmetrical distribution.
  • Facade lighting.
  • Security lighting.
  • Signage lighting.
  • General floodlighting.
  • Car park lighting.
Lumina Trunion 54° Beam Lumina Trunion 122° BeamLumina Trunion Side View Asymmetric Lumina Trunion Front View Asymmetric

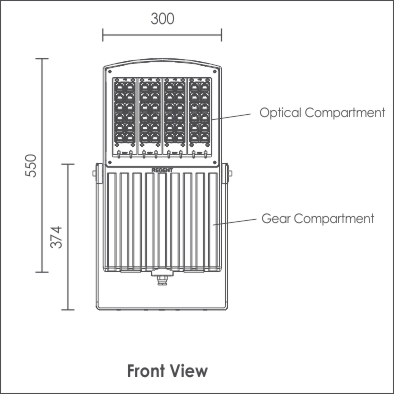

TECHNICAL

COLOURS

Black (BL)
White (WH)
Matt Silver (MS)
Charcoal Grey (CG)

INSTALLATION INSTRUCTIONS

 Installation Instructions available on request
