This luminaire is specifically implemented in all lighting applications in street, squares, parking areas and landscapes. Light distribution in this fitting is symmetrical or asymmetrical and is used to provide a predominantly functional purpose in guiding or leading people and vehicles.
Ideal solution for street lighting & parking areas
Symmetrical or Asymmetrical light distribution

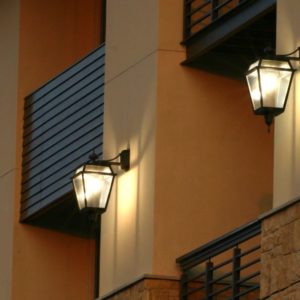

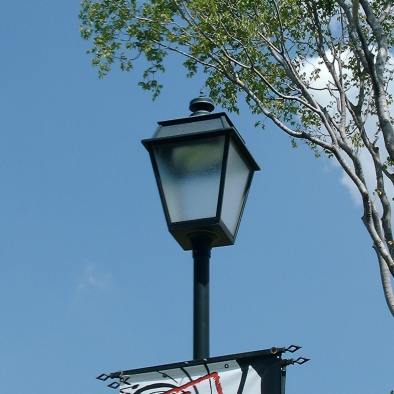

Post or wall mounted
Designed to operate a range of CFL, HPS, MH lamps and LED up to 72W
Recommended mounting height 3m to 9m
MODEL NUMBER : T102 - TUSCAN
HOUSING : LM 6 die cast aluminium.
LIGHT SOURCE : The fitting is designed to operate a range of Compact Fluorescent lamps up to 42W, High Pressure Sodium lamps up to 150W, Metal Halide lamps up to 150W and LED up to 72W. LED used - Osram high powered LED mounted onto an aluminium circuit board incorporating Zener diodes and thermal protection. Zener diodes between each LED.
Recommended LED 4000 Kelvin Natural white with CRI >70.
Ambient temperature 36° C , designed for 55 000 hours.
DIFFUSER : Standard or tempered glass.
LENSES : For LED - Modular optical lenses are used. Material PMMA. Various lens options available for different applications, allowing for custom solutions.
REFLECTOR : 99.7% purity deep drawn anodised aluminium reflector for Compact Fluorescent, High Pressure Sodium and Metal Halide lamps, for asymmetrical distribution.
FINISH : Powder coated or paint technique.

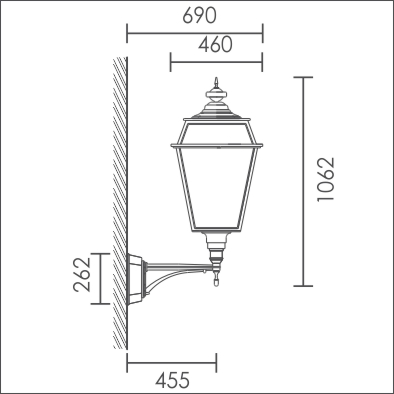

MOUNTING : Post or wall mounted.

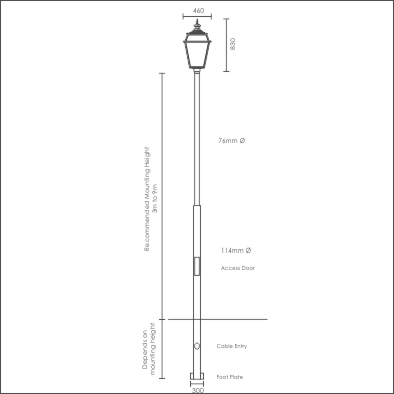

Recommended mounting height 3m to 9m. Spigot entry 76mm Ø.
For detailed mounting specifications refer to pole and accessories section.
CONTROL GEAR : Electronic or magnetic control gear. The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase. For LED - Incorporates an electronic trip connector protector with surge protection 6 KV. Additional removable inline surge arrester 10 KV
FASTENERS : All external screws are stainless steel. Cable glands are SABS approved to insulate IP67 ingress protection.
GASKET : Gaskets are manufactured from post cured silicone rubber material. Silicone gaskets perform in a wide temperature range -40° C to +200° C.
INGRESS PROTECTION : IP 545.
OPERATING TEMPERATURE (Ta) ≤ 36° C.
WEIGHT : 19 Kg total including control gear.
WINDAGE : Max. projected areas for mounting 0.2231 m2.
LED Osram Oslon Square Giant 4000 Kelvin
|24 LED's||36 LED's|
|500mA||34W||5352 lm||51W||8028 lm|
|700mA||48W||7234 lm||72W||10851 lm|
3000K and 5000K available on request. For 3000K reduce lumen output by 7%.
The nominal flux of the LED is based on the LED manufacturers data at 25° C.
The environmental conditions of the installation will impact the efficiency of the LED’s.
Due to the continual advancement in LED technology the type of LED is subject to change.
Conventional Light Source
- Indoor or outdoor application.
- Symmetrical or Asymmetrical distribution.
- Decorative street lighting.
- Parking areas.
- Parks and gardens.
- Residential areas.
- Squares and plazas.
|Moss Green (MS)|
|Antique Green (AG)|
|Antique Gold (AD)|
|Antique Silver (AS)|
|Antique Copper (AC)|
