Tower Mini Urban Light Element

TOWER MINI

With its simple and attractive design, this urban light element provides even and comfort lighting. Its slender, streamlined form and minimalist design helps it blend seamlessly into its surroundings. It is particularly suited to the lighting of  squares, parks and pedestrian streets.


Ideal solution for landscape & pedestrian areas.

Symmetrical light distribution.

LM6 die cast & extruded aluminium.

IP54.

Windage projected areas for mounting up to 0.36m2

Recommended mounting height 5.5m or 3.25m.

SPECIFICATIONS

MODEL NUMBER : C202 - TOWER MINI

HOUSING : LM 6 die cast aluminium and extruded aluminium.

LIGHT SOURCE : The fitting is designed to operate a range of Metal Halide lamps up to 70W, a Fluorescent up to 58W and LED up to 38W.

DIFFUSER : UV stabilised satine acrylic.

REFLECTOR : Metal Halide lamps - 99.80% high purity aluminium reflector. LED’s - 93% efficiency. Precision-molded from high grade PC UL94 HB rated material with operating rating -40°C to +100°C.

FINISH : Powder coated.

MOUNTING : Plinth mounted.

ACCESSORIES : Access door, MCB and bolt cage.

CONTROL GEAR : Electronic or magnetic control gear. The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.

FASTENERS : All external screws are stainless steel.

GASKET : Neoprene and Nitrile gaskets.

INGRESS PROTECTION : IP54.

OPERATING TEMPERATURE (Ta) ≤ 36° C.

WINDAGE : Max. projected areas for mounting - 0.36m2

WEIGHT : 5 Kg including control gear.

FEATURES : Surge arrester to protect LED supply.

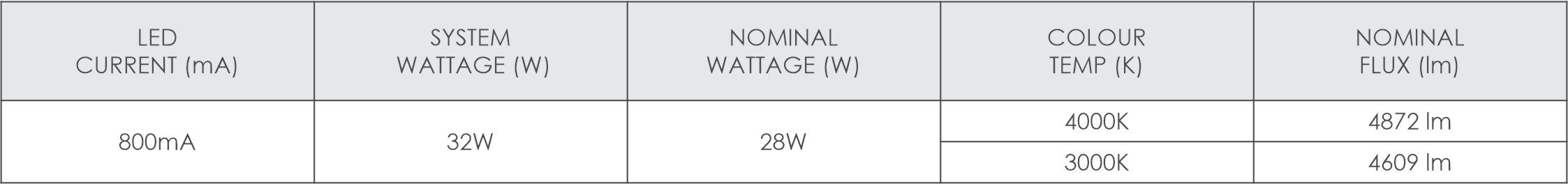

LIGHT SOURCE

LED COB 17mm

LED
Current
Luminaire
Wattage (W)
Module
Wattage (W)
Colour
Temp
Nominal
Flux (lm)
1050mA40W38W4000K5720 lm
3000K5530 lm

Conventional Light Source

LampWattageBase
HIT (MH)35WG12
70W
T8 Fluorescent58WG13

LIGHT DISTRIBUTION
Tower Mini Urban Light Element light distribution
APPLICATION AREAS
  • Indoor or outdoor application.
  • Symmetrical distribution.
  • Public areas.
  • Parks and gardens.
  • Squares and plazas.
Tower Mini Urban Light Element light distribution

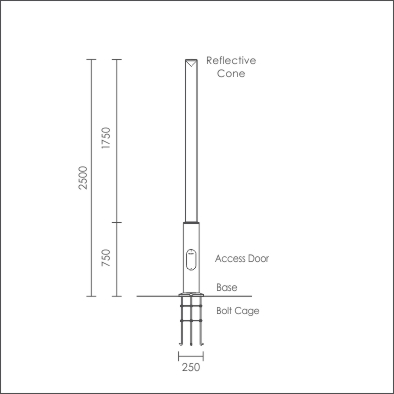

TECHNICAL

COLOURS

Black (BL)
White (WH)
Matt Silver (MS)
Charcoal Grey (CG)
INSTALLATION INSTRUCTIONS
  Installation Instructions available on request
CERTIFICATIONS

IP54
