Brite 130 Asymmetric

BRITE 130 ASYMMETRIC

An asymmetric inground up-lighter with a round stainless steel trim, suitable for illuminating columns, wall accents, architectural and landscape features. Remote driver should be installed in a remote mounted waterproof box.


Ideal solution for parks and gardens.

Die cast aluminium body with stainless steel 316 frame.

In-ground installation.

Asymmetric light distribution

IP65.



SPECIFICATIONS

MODEL NUMBER : L140 - BRITE 130 AYSMMTRICAL

HOUSING : Die cast aluminium body with stainless steel 316 frame.

LIGHT SOURCE : The fitting is designed to operate a 20W LED.

DIFFUSER : Tempered glass 4mm.

FINISH : Anodised.

MOUNTING : In-ground installation.

ACCESSORIES : Plastic sleeve for mounting.

CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.

FASTENERS : All external screws are stainless steel.

INGRESS PROTECTION : IP65.

OPERATING TEMPERATURE (Ta) ≤ 36° C.

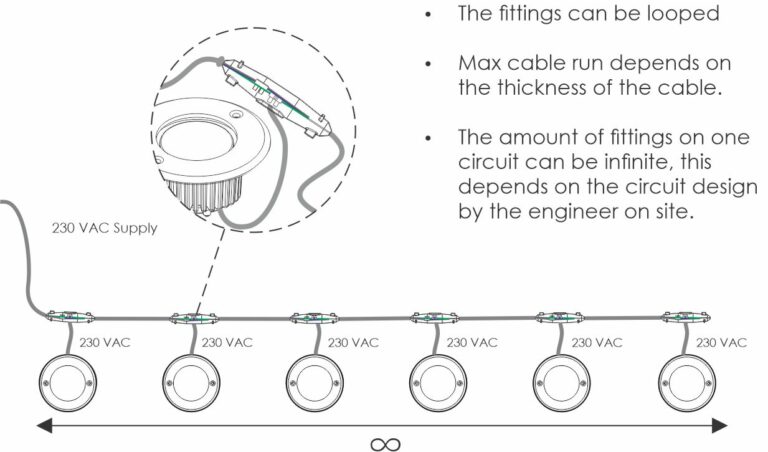

FEATURES : Remote IP65 connection box supplied with surge arrester. Allowances must be made for the installation of this remote box. 3m cable is supplied per fitting and junction kits for additional fittings. Maximum length away from driver is 10m.

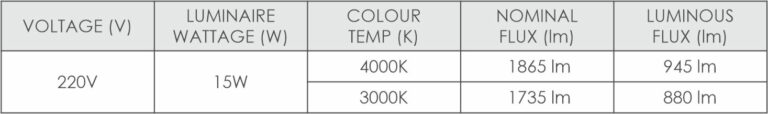

LIGHT SOURCE

LED 17mm Cob

LED
Current
Luminaire
Wattage (W)
Colour
Temp
Nominal
Flux (lm)
350mA15W4000K2070 lm
3000K1925 lm
500mA20W4000K2759 lm
3000K2566 lm

LIGHT DISTRIBUTION
Brite 130 Asymmetric
APPLICATION AREAS
  • Indoor or outdoor application.
  • Symmetrical distribution.
  • Parks and gardens.
  • Pedestrian walkways.
  • Building entrances.
Brite 130 Asymmetric light distribution
CERTIFICATIONS

Class 3IP65LED
