Iris urban light element

IRIS

This urban light element is ideal for lighting up modern and architectural squares or walkways, it has 4 vertical arms at each corner, which give it a thin and slender silhouette.


Ideal solution for landscape & pedestrian areas

Symmetrical light distribution

Designed to operate a range of LED’s up to 38W

Recommended mounting height 3m to 4m

IP65

SPECIFICATIONS

MODEL NUMBER : C212 - IRIS

HOUSING : LM 6 die cast aluminium and extruded aluminium.

LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 38W.

DIFFUSER : Tempered glass.

REFLECTOR : 93% efficiency. Precision-molded from high grade PC UL94 HB rated material with operating rating -40°C to +100°C.

FINISH : Powder coated.

MOUNTING : Plinth mounted.

ACCESSORIES : Access door, MCB and bolt cage.

CONTROL GEAR : Electronic control gear. The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase. Constant current driver for LED.

FASTENERS : All external screws are stainless steel.

GASKET : Post cured silicone sponge and EPDM gaskets.

INGRESS PROTECTION : IP65.

OPERATING TEMPERATURE (Ta) ≤ 36° C.

WINDAGE : Max. projected areas for mounting - 0.38m2.

WEIGHT : 20 Kg including control gear.

FEATURES : Surge arrester to protect LED supply.

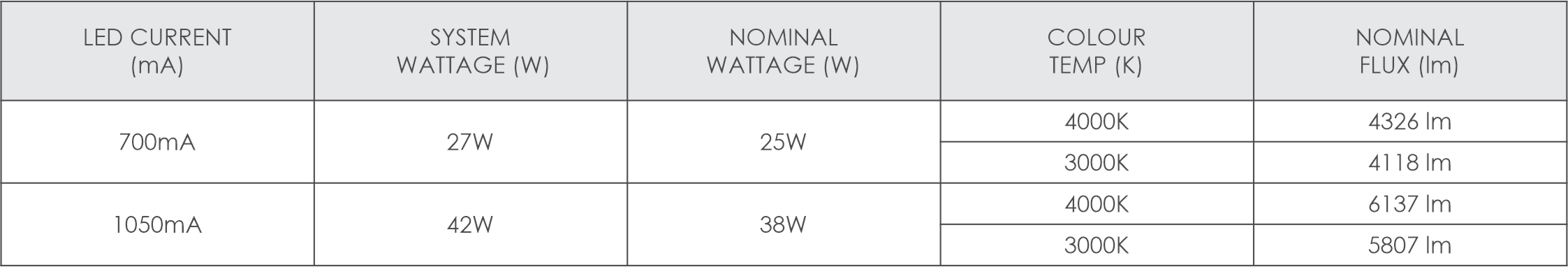

LIGHT SOURCE

LED COB 17mm

LED
Current
Luminaire
Wattage (W)
Module
Wattage (W)
Colour
Temp
Nominal
Flux (lm)
700mA27W25W4000K4000 lm
3000K3870 lm
1050mA40W38W4000K5720 lm
3000K5530 lm

LIGHT DISTRIBUTION
Iris light distribution
APPLICATION AREAS
  • Indoor or outdoor application.
  • Symmetrical distribution.
  • Public areas.
  • Parks and gardens.
  • Squares and plazas.

Iris light distribution

TECHNICAL

COLOURS

Black (BL)
White (WH)
Matt Silver (MS)
Charcoal Grey (CG)
INSTALLATION INSTRUCTIONS
  Installation Instructions available on request
CERTIFICATIONS

IP65   SABS approved
